Pneumatic ball valves are a critical component in the field of industrial automation, widely used for controlling the flow of liquids, gases, and other substances in piping systems. These valves rely on compressed air to drive a spherical ball inside the valve body to regulate flow. With their high efficiency, precision, and durability, pneumatic ball valves have become indispensable in a wide range of applications, from manufacturing to energy production. This article explores the structure, working principle, advantages, and common applications of pneumatic ball valves, shedding light on their importance in modern industrial processes.

    Structure of Pneumatic Ball Valves

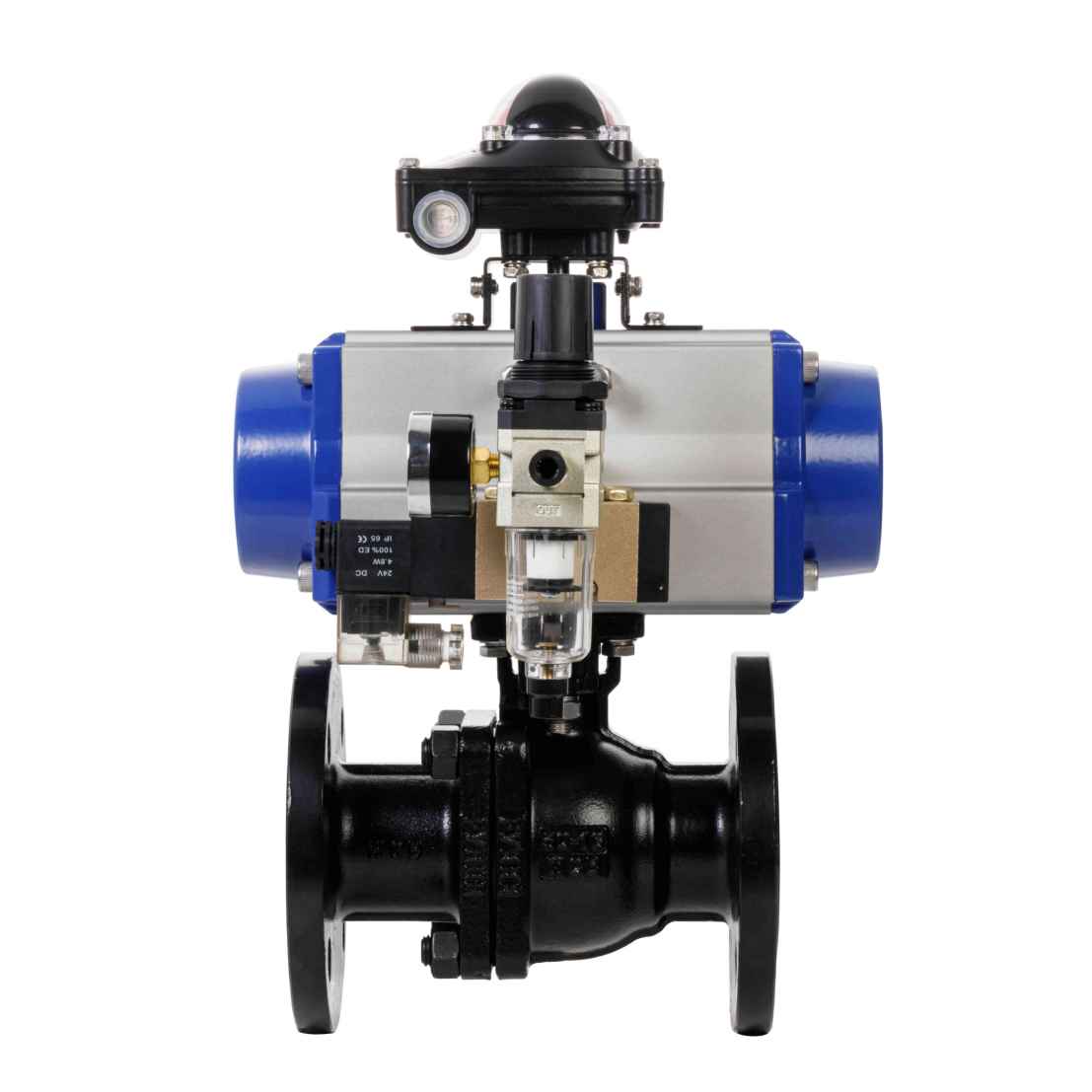

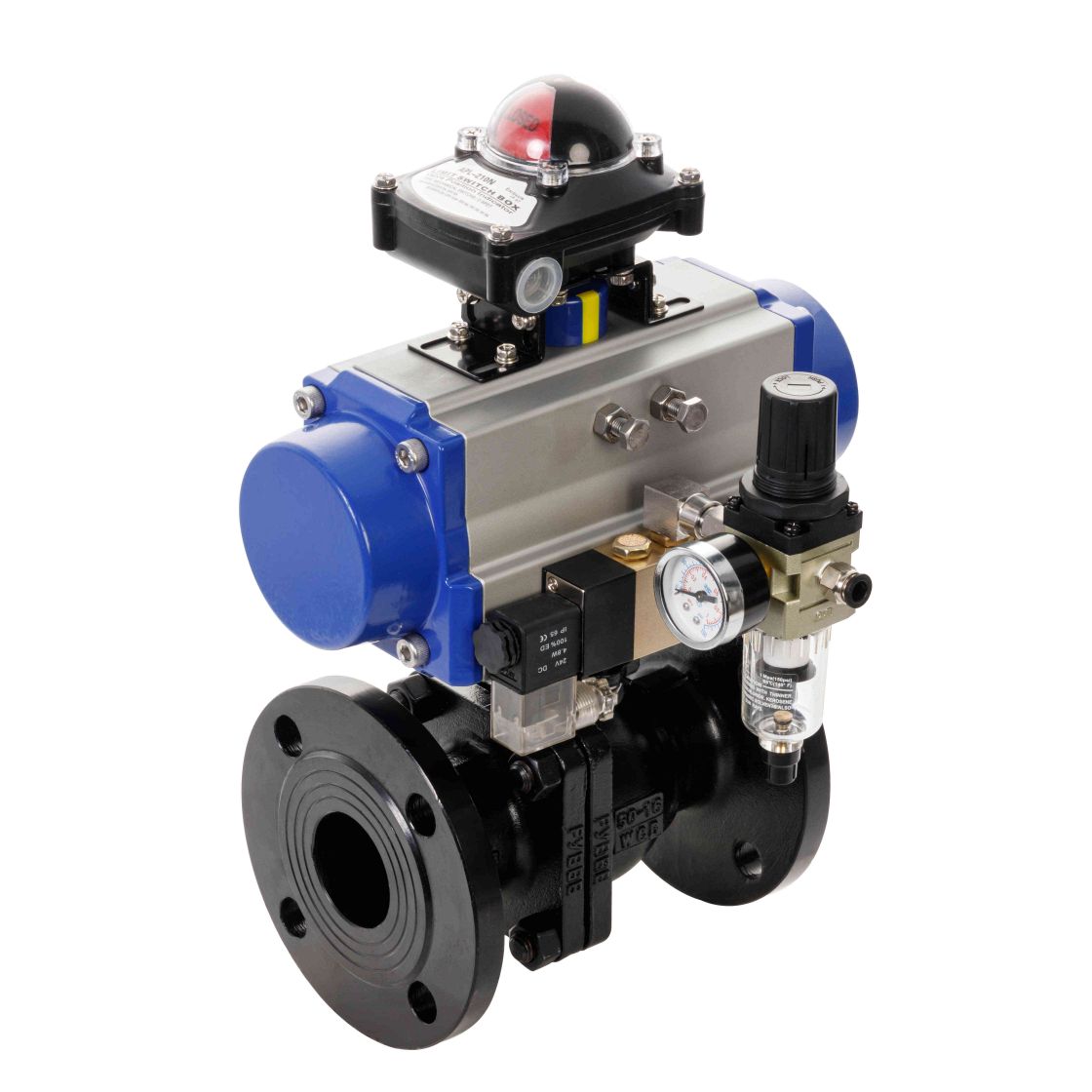

    A pneumatic ball valve typically consists of several key components： the valve body, the ball, the seat, the stem, and the pneumatic actuator. The valve body houses the ball and the seat and provides the necessary structure to ensure proper sealing and flow control. The ball itself is a spherical object with a hole or port through its center, which can be rotated to either align with the pipeline (allowing fluid to flow) or be perpendicular to the flow direction (blocking the fluid).
