The electric butterfly valve is a widely used device in fluid control systems, offering a range of benefits that make it essential in industries such as water treatment, oil and gas, chemical manufacturing, and HVAC (heating, ventilation, and air conditioning). As an essential component, the electric butterfly valve allows for efficient regulation of the flow of liquids and gases, providing both convenience and precision in operation. In this article, we will explore the structure, working mechanism, applications, and advantages of the electric butterfly valve.

    Structure and Working Mechanism

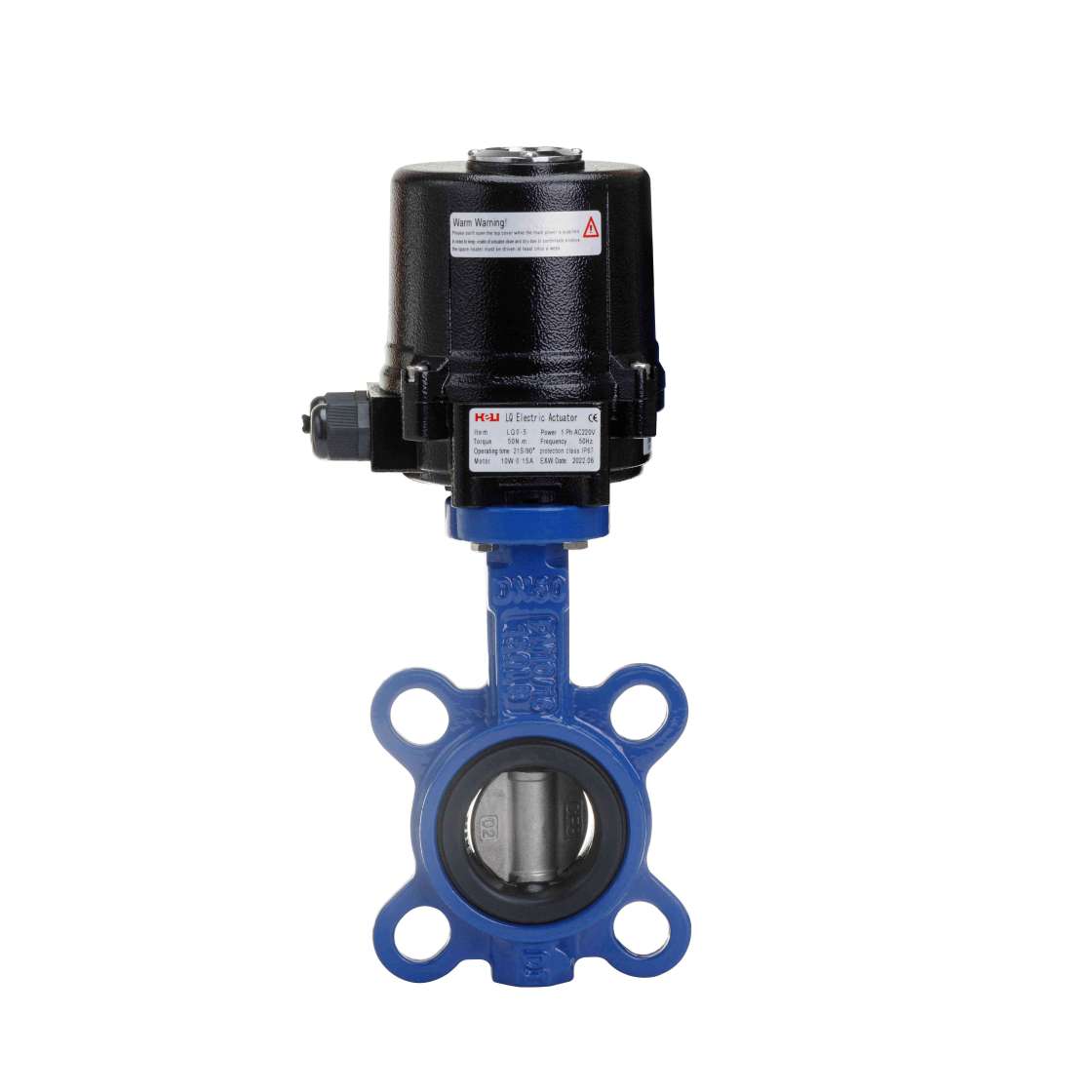

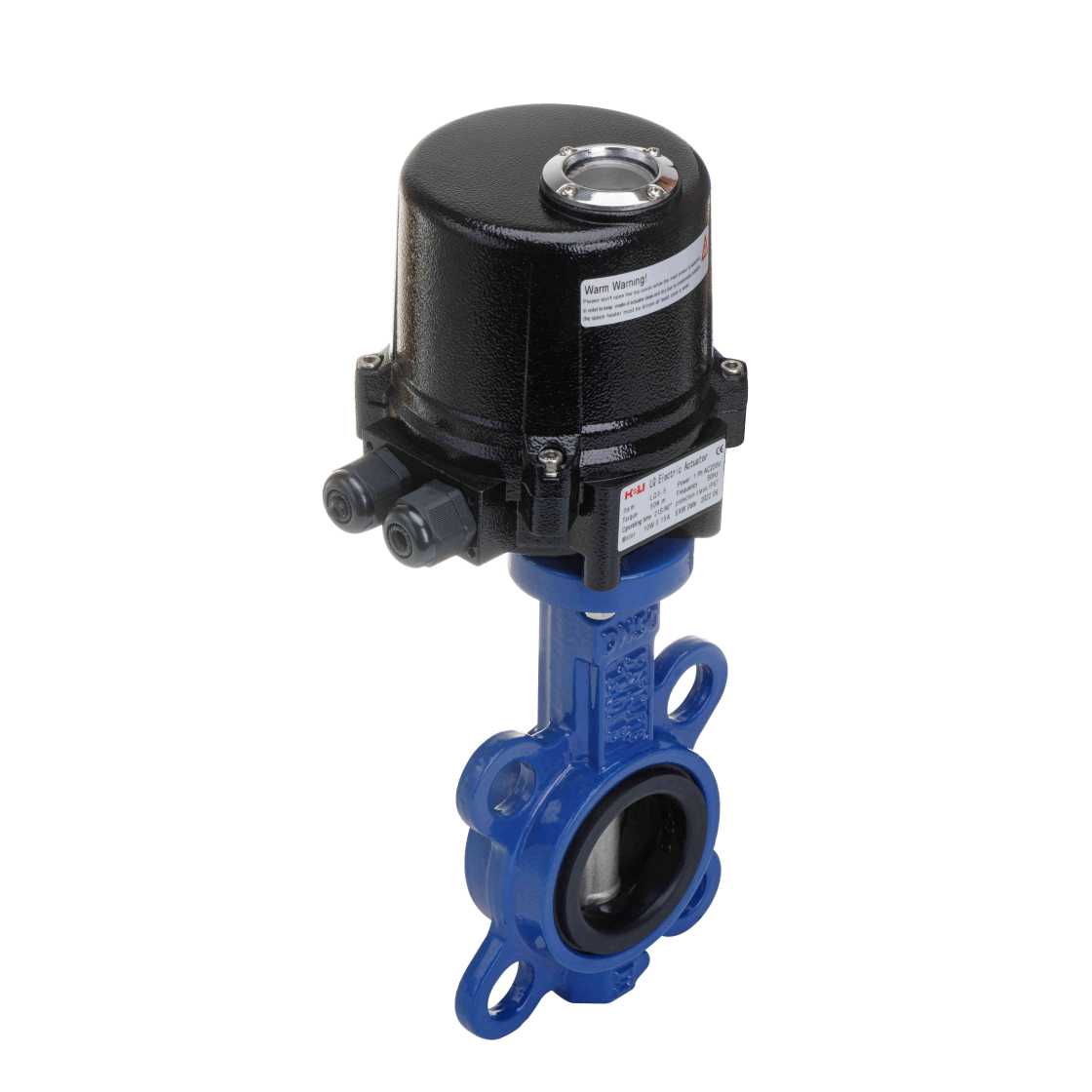

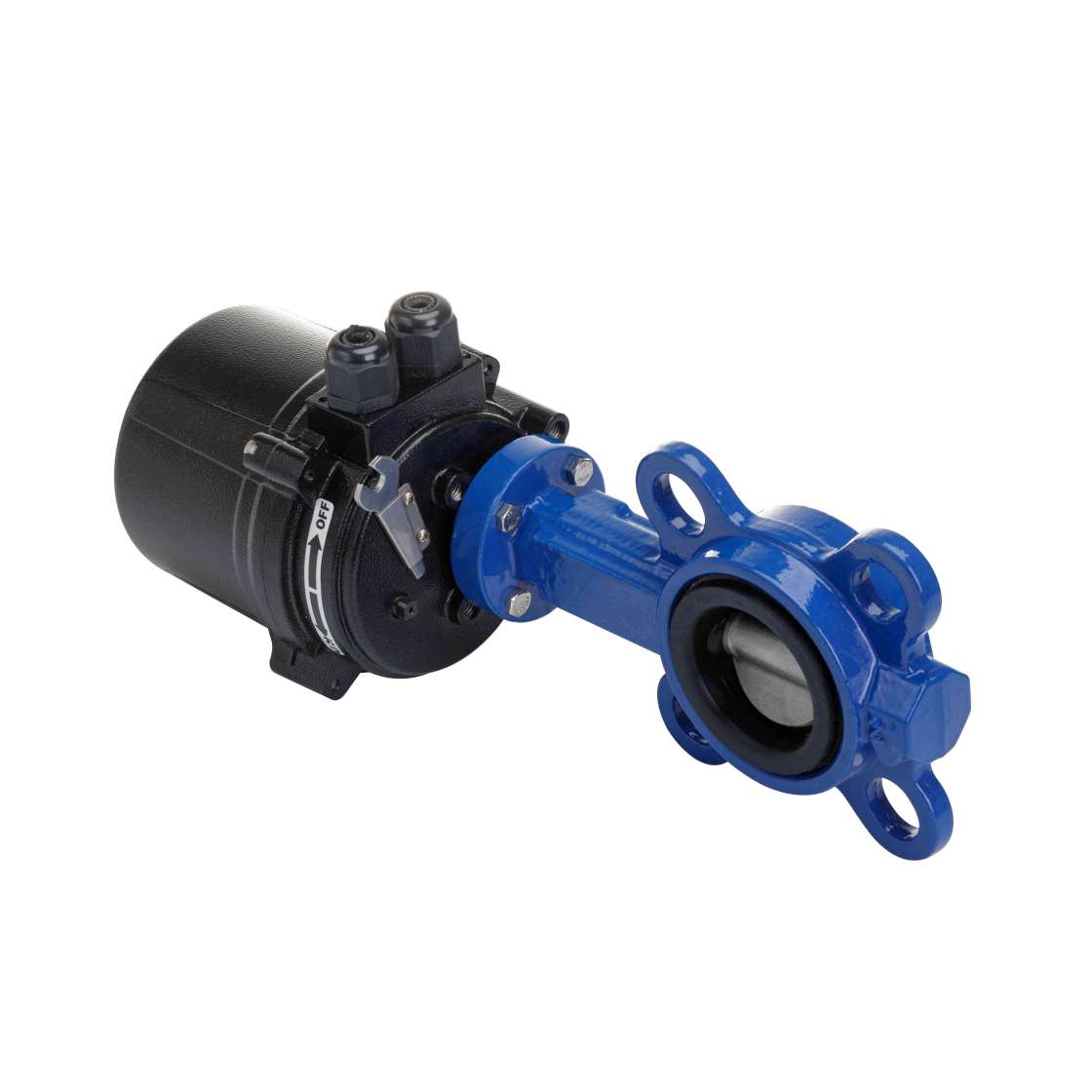

    An electric butterfly valve consists of several key components: a disc, a shaft, an actuator, and a valve body. The disc, which is mounted on a shaft, is the primary part that controls the flow of fluid. When the valve is in the open position, the disc is rotated parallel to the flow, allowing the fluid to pass through. In the closed position, the disc is rotated 90 degrees, blocking the flow of fluid entirely.
