Pneumatic ball valves are essential components in various industrial applications, particularly in systems requiring the precise control of fluid flow. Utilizing compressed air as a power source, these valves offer a reliable and efficient means of regulating liquids and gases. This article delves into the workings of pneumatic ball valves, their applications across industries, and the benefits they bring to modern automation.

    Mechanism of Pneumatic Ball Valves

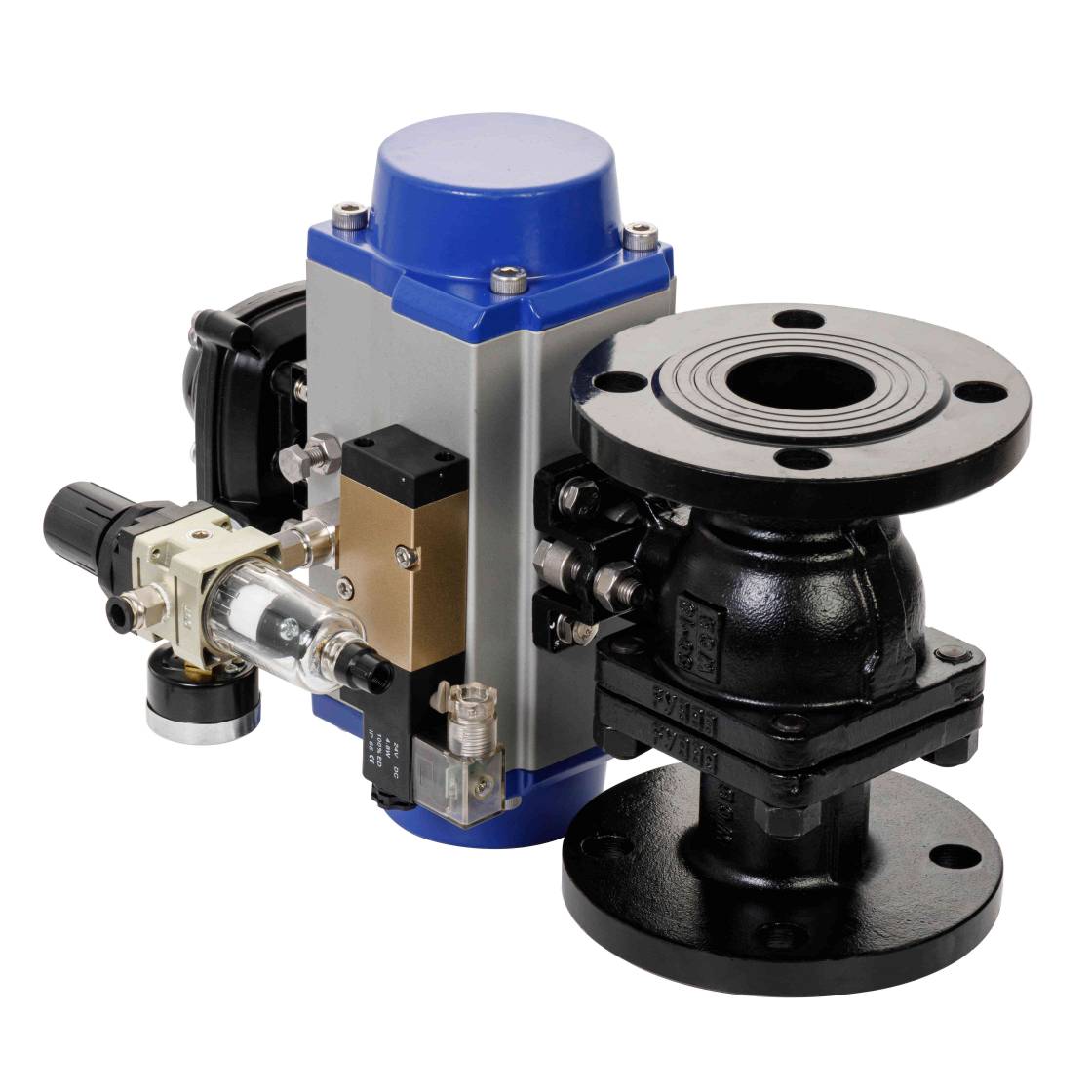

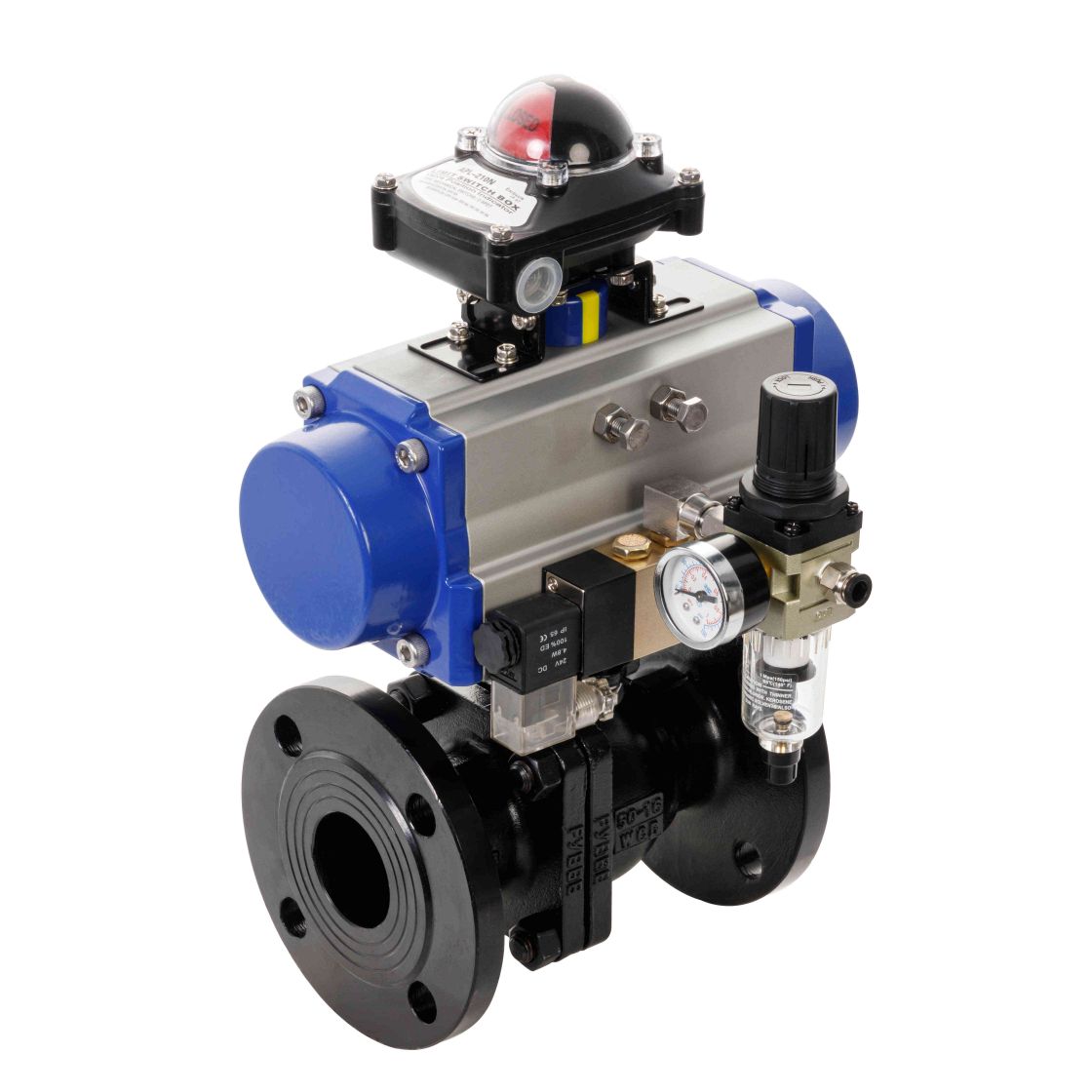

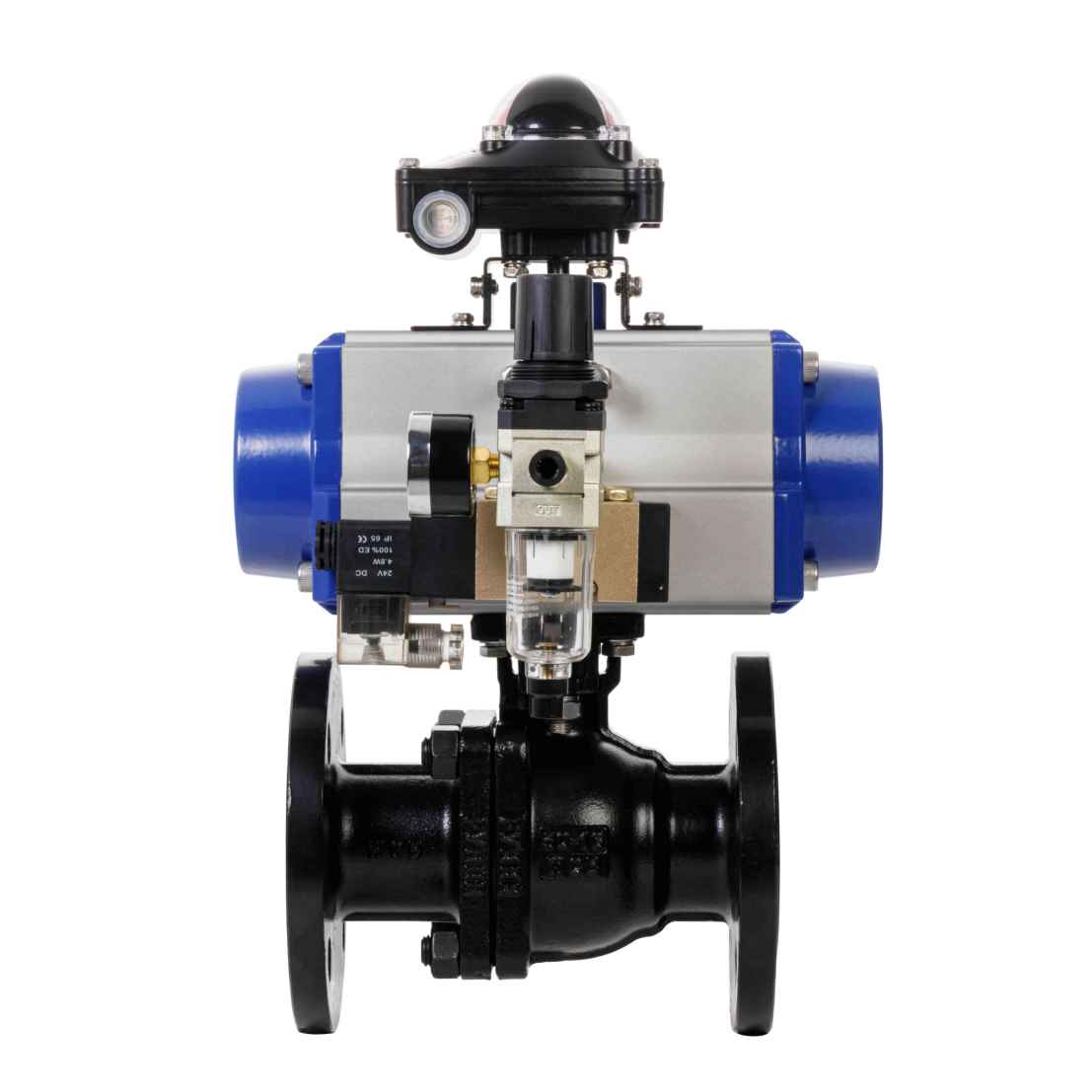

    At the core of a pneumatic ball valve is a spherical disc, known as a ball, which contains a bore. The valve operates by rotating this ball a quarter turn to either allow or block fluid flow. When the bore is aligned with the pipeline, the valve is open, facilitating flow. Conversely, when the ball is rotated 90 degrees, the bore is perpendicular to the pipeline, effectively sealing it shut.
